New DaimlerChrysler Wind Tunnel

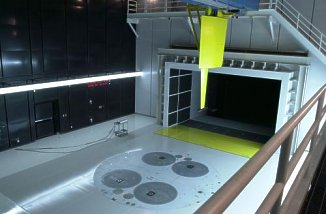

Photo: DC

State-of-the-Art Facility Will Speed Development of New Chrysler Group Products

$37.5 Million Investment Key to Future Vehicle Design

Investment in Future Continues at Chrysler Group

Auburn Hills - DaimlerChrysler Corporation opened a new $37.5 million wind tunnel facility that will provide the company with state-of-the-art aerodynamic and acoustic testing capability in the design and engineering of future Chrysler, Jeep® and Dodge vehicles.

The 31,000-square-foot Aero-Acoustic Wind Tunnel facility, which will also be used for racing vehicle development, can accommodate vehicles up to 10,000 pounds. The 18-foot turntable permits precise positioning of vehicles during testing. The facility's fans can generate winds in excess of 150 miles per hour to assess aerodynamic drag and wind noise.

With the use of acoustic materials and other design elements to minimize background sound, the facility is acoustically the quietest wind tunnel currently in use in the automotive industry. This permits the precise analysis of the wind noise characteristics of new vehicle designs. Constant temperature controls allow for precise, repeatable acoustic testing.

The Aero-Acoustic Wind Tunnel is the latest addition to the Scientific Laboratories at the DaimlerChrysler Technology Center, including an expanded powertrain test facility opened in 2000.

The new aerodynamic and acoustic test facility is located on the south side of the technology center, with easy access to the Design and Engineering centers and vehicle fabrication shops.

The Aero-Acoustic Wind Tunnel is designed to accomplish three functions in the vehicle development process:

Enhance fuel efficiency and performance of Chrysler, Dodge and Jeep vehicles through improved aerodynamic design
Minimize wind noise levels
Validate performance of exterior vehicle components through whole-vehicle testing in operating speed ranges.

"In this tunnel, we can produce wind speeds of more than 150 miles per hour," said Mark Gleason, Supervisor of Aerodynamic Wind Tunnels. "That enables us to test the aerodynamic, acoustic and functional performance of even the fastest vehicles for the American and European markets. And, we will also be a major factor in the development of racing vehicles supported by DaimlerChrysler.

"In addition, the wind tunnel is large enough to accommodate testing of the full range of vehicles," Gleason said. "We can test everything from a Dodge SRT-4 to the largest Ram pickup without concern that there will be significant distortions in the air flow in the tunnel. That gives us a real advantage over smaller wind tunnels."

Gleason will head up a team of seven aerodynamic and acoustic engineers who will conduct operations at the new facility, which is already fully booked through the end of 2002.

DaimlerChrysler designers and engineers will continue to use the company's three-eighths model wind tunnel and computational fluid dynamics (CFD) as complementary tools to the new full-scale facility.

The three-year wind tunnel construction project was completed on budget and ahead of schedule.

Key facts about the new DaimlerChrysler Aero-Acoustic Wind Tunnel.

Site: DaimlerChrysler Technology Center Scientific Laboratories
Groundbreaking: February 1999
Opening: July 2002
Cost: $37.5 million
Dimensions:
Tunnel footprint:
109 feet x 286 feet, 31,000 square feet (33 meters x 87 meters, 2,880 square meters)
Test chamber is 68 feet long x 48.5 feet wide x 33 feet high (21 meters x 15 meters x 10 meters)
300 square foot (28 square meters) nozzle exit area 18-foot (5.5-meter) diameter turntable for stationing test vehicles

Performance:

Maximum air flow speed > 150 mph (240 kph)
Background wind noise in test chamber less than 62.5 dB(A) at 87 mph (140 kph) air flow speed
Constant temperature control for precise acoustic testing

Balance:

Six-component weight beam balance is accurate with <.01 percent margin
Total weight of balance and turntable is 67 tons
Able to support vehicles up to five tons (10,000 pounds)
Yaw capability to the full range of angles, 180 degrees, to simulate crosswind conditions

Fan:

Powered by one 4,730 kW (6,343 hp) electric motor
12-blade, 26-foot-diameter fan
Fixed pitch, with seven anti-swirl vanes
Maximum velocity is 290 rpm

Construction:

Reinforced concrete walls with welded steel fan section
Acoustic material lining in walls reduces sound in test area

History of DaimlerChrysler Aerodynamic Research

The former Chrysler Corporation was the industry leader in America in the application of aerodynamic research to the design and engineering of automobiles. Chrysler engineers, led by Carl Breer and with the advice of aviation pioneer Orville Wright, developed the first aerodynamic wind tunnel specifically designed for automotive research and design in the 1920's.

The facility, located at Chrysler headquarters in Highland Park, Mich., was large enough for testing of one-tenth scale vehicle models.

The early achievements in aerodynamic design were demonstrated in the Chrysler Airflow and De Soto Airflow vehicles unveiled in 1934. These radically-styled vehicles, featuring the industry's first one-piece curved glass windshield, were designed and engineered for a smooth ride and efficient highway cruising.

The first Chrysler wind tunnel was dismantled in the years following World War II, but interest in aerodynamic research continued. Research was conducted at university and corporate wind tunnel facilities around the country.

Increased interest in racing aerodynamics in the 1960's and the desire for improved fuel efficiency beginning in the 1970's renewed interest in aerodynamic design. In 1976, Chrysler built a wind tunnel at the Chelsea (Michigan) Proving Grounds that permitted research on three-eighths scale models.

Two new wind tunnels were incorporated into plans for the Chrysler Technical Center in the early 1990's, a scale model tunnel to prove out the facility design, and the new full-scale wind tunnel. The three-eighths scale wind tunnel, which will continue to support the work of automotive designers, opened in 1992.

(Jun 28, 2002)
