Mercedes-Benz: Mercedes 300 SL Technology
The technology The technical make-up of the 300 SL owes much to the Mercedes-Benz 300 (W 186 II) sedan, the vehicle of choice for many statesmen and industrialists and also known as the “Adenauer Mercedes”. The six-cylinder engine featured a number of modifications, one of which saw the carburetor replaced by a direct injection system – a technical advance which was years ahead of its time. This new technology boosted output to 158 kW (215 hp) and the car’s maximum speed up as far as 260 km/h, depending on the rear axle ratio. Customers could order their SL with a choice of five different ratios. The standard 1:3.64 variant was set up primarily to deliver rapid acceleration and capable of 235 km/h.

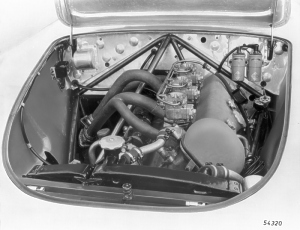

The engine had to be tilted 45 degrees to the left in order to squeeze under the hood of what was an extremely flat car, thus reducing the amount of space in the passenger-side footwell. The SL’s center of gravity was almost exactly in the middle of the car, laying the perfect foundation for fast and precise cornering. The chassis was essentially the same as the 300a sedan’s, but with sportier tuning, and the drum brakes were adapted in response to the increased performance of the muscle-bound sports car. Only later, in the 1961 roadster variant, were these replaced by disc brakes all round
|
|
|||||||
|
The response of the engineers was to devise an upwards-opening door concept. The elegance of the car’s side view remained undisturbed by a door handle, with a discreet pull-out bar disengaging the lock. The door then opened upwards with the help of a telescopic spring.

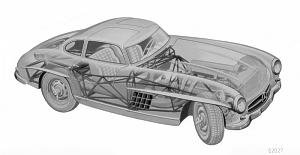

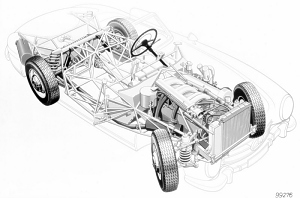

The tubular frame for the 300 SL, designed by Rudolf Uhlenhaut, reduced weight to a minimum but provided maximum strength. A series of extremely thin tubes were welded together into triangles to produce a frame which boasted impressive torsional stiffness and was only subjected to compression and tensile forces. In the standard SL the frame tipped the scales at only 82 kilograms, whilst the complete car in ready-to-drive condition and including the spare wheel, tools and fuel weighed in at 1,295 kilograms. The body of the 300 SL was constructed largely out of high-grade sheet steel, although aluminum was used for the engine hood, trunk lid and the skin panels for the door sills and doors. For a relatively small extra charge, customers could choose to have the whole body made from light alloy, which cut 80 kilograms off the car’s total weight. However, only 29 SL customers took up this option and today their cars are highly sought-after rarities.
photos: Mercedes-Benz
|
|||||||||
